Multi Tower Pillar
MultiTower Pillar allows you to cover columns all around. It therefore creates an impressive advertising area which gets even more impressive when it is LED backlit.
Multi Tower Pillar

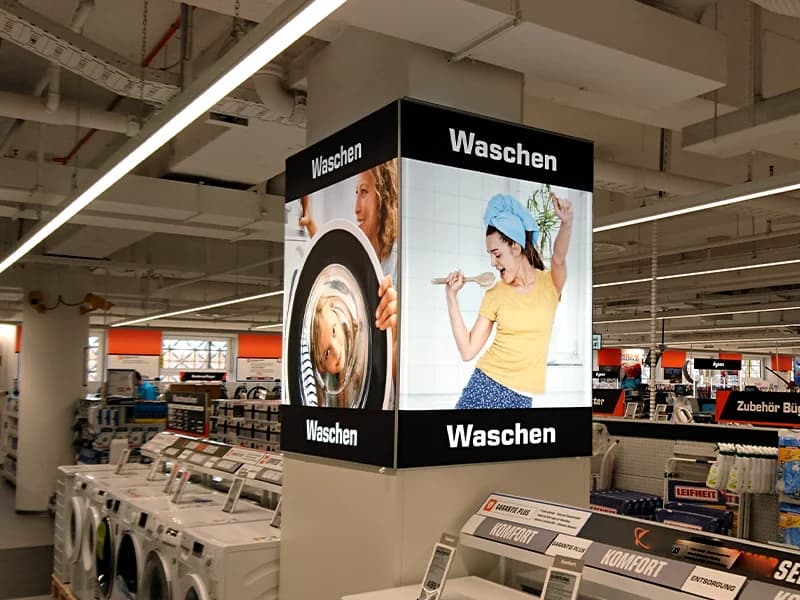

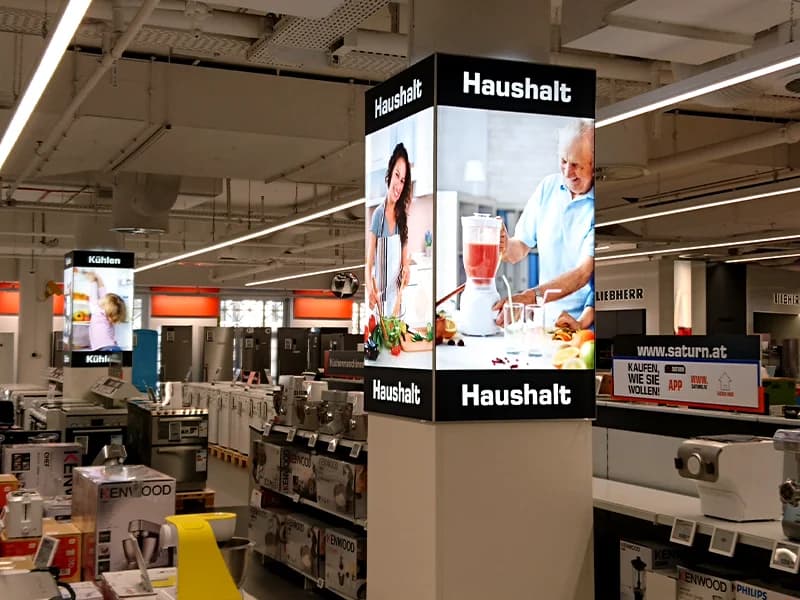

The Multi Tower Pillar allows for full column cladding and creates an impressive advertising surface that becomes even more striking with LED backlighting. When used with lighting, a 6.5 cm distance between the column and the cladding must be maintained to ensure even illumination.
profile design – outside corner
The advantage compared to similar products is the 90° profile slot. The fabric is pushed 3 mm into the slot and only then tensioned around the corner. This technique helps to preserve the fabric as it prevents it from overstretching.

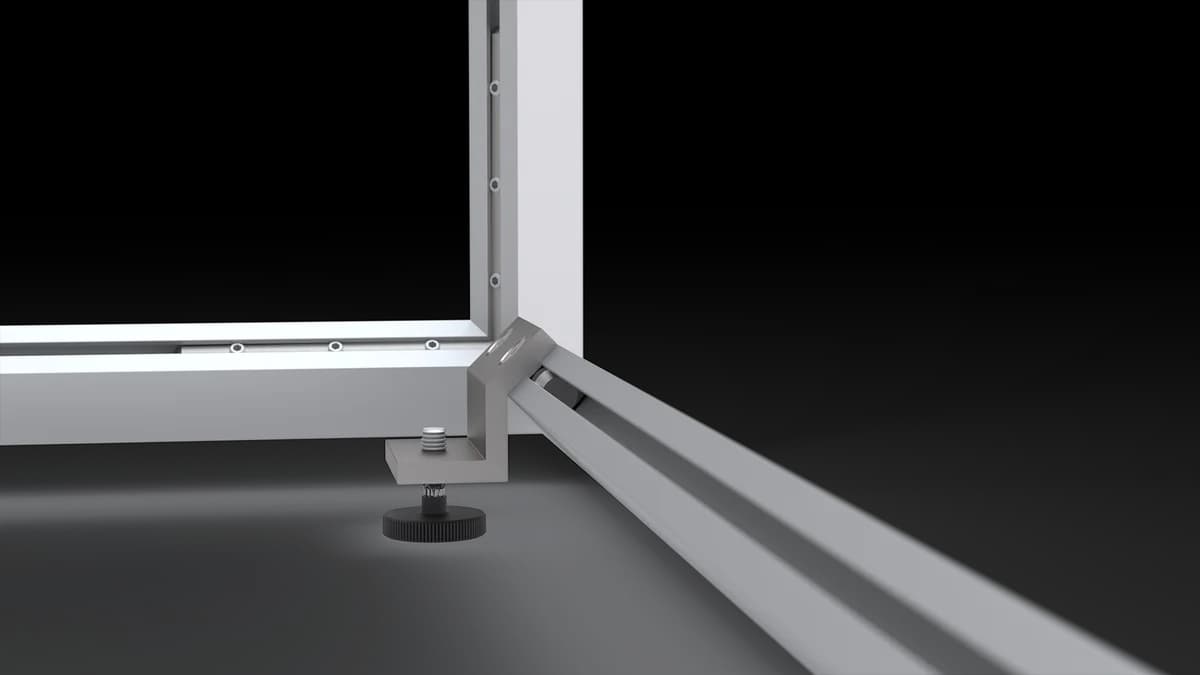

base
The base for multi tower 3D contains adjustable feet for leveling on uneven floors or ground. This part can also be used to connect cubes or towers..

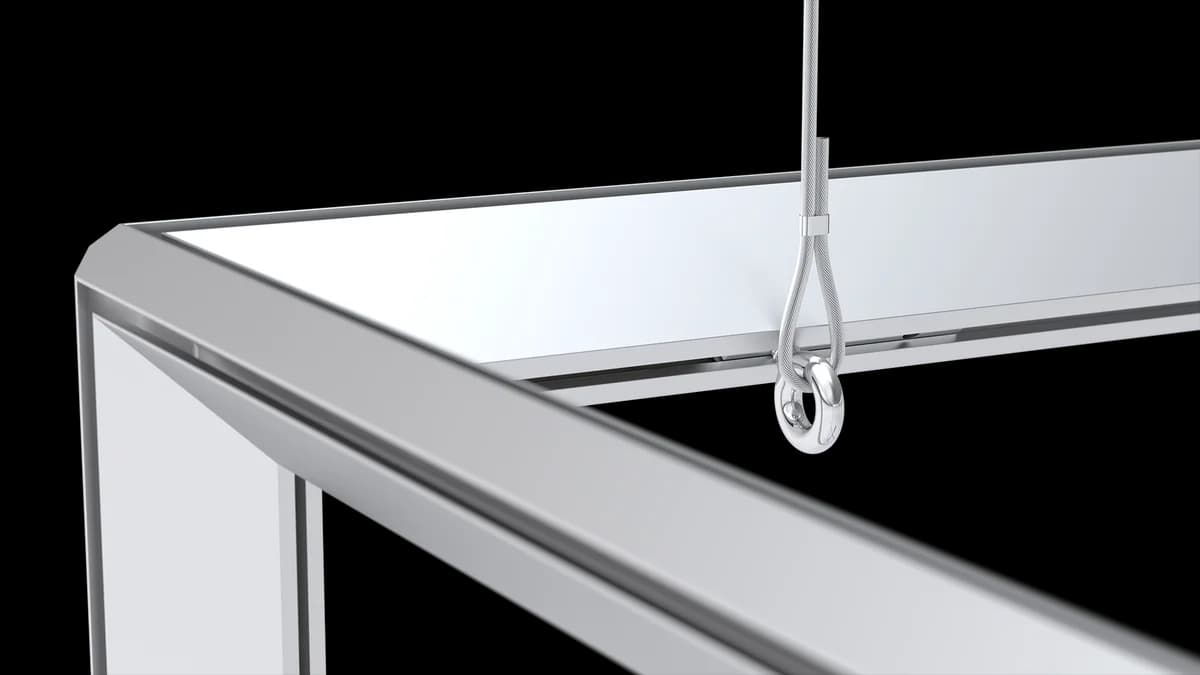

steel cables/eyebolts for suspension
Multi frame tension frames can be suspended from ceilings. All necessary parts such as steel cables, eyebolts etc. are available as accessories.

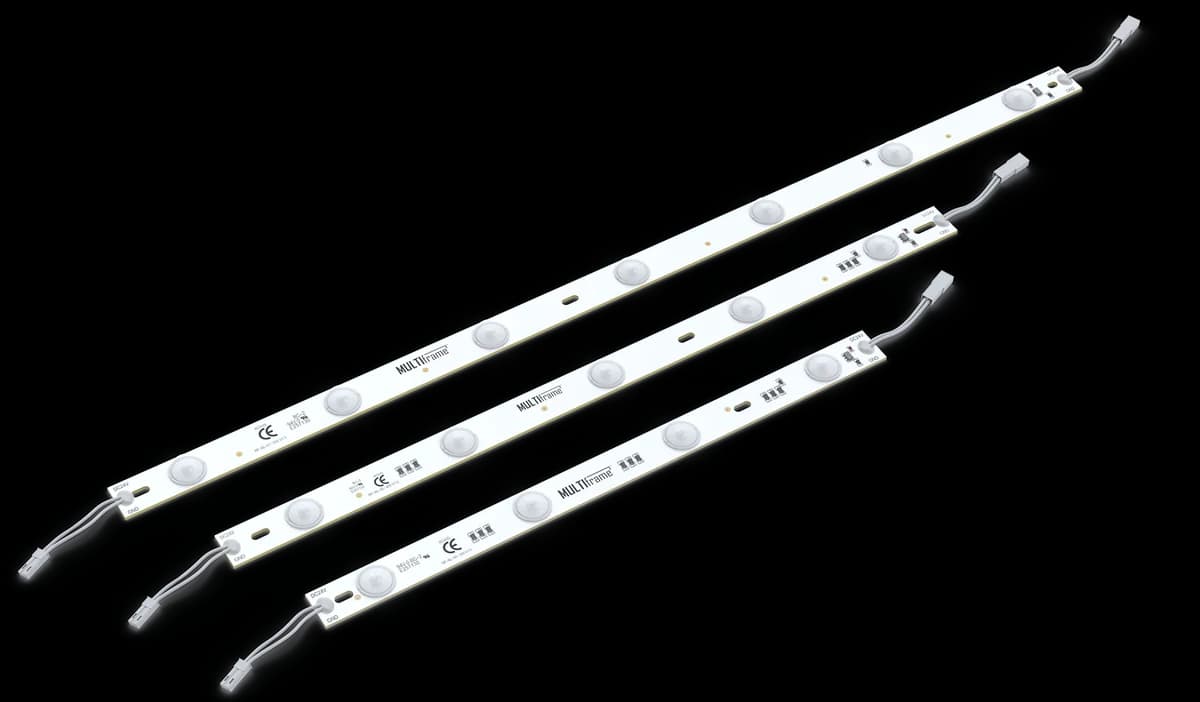

LED technique for wall mounting
The perfect combination of LED and lens guarantees the absolute even lighting and brightness without any shadows. Using high quality OSRAM LED technology in combination with a perfectly adjusted lens the following results can be achieved: approx. 7000 lm/m², approx. 45 watt/m2. Upon request even the brightness of the LEDs can be adjusted (dimmable).

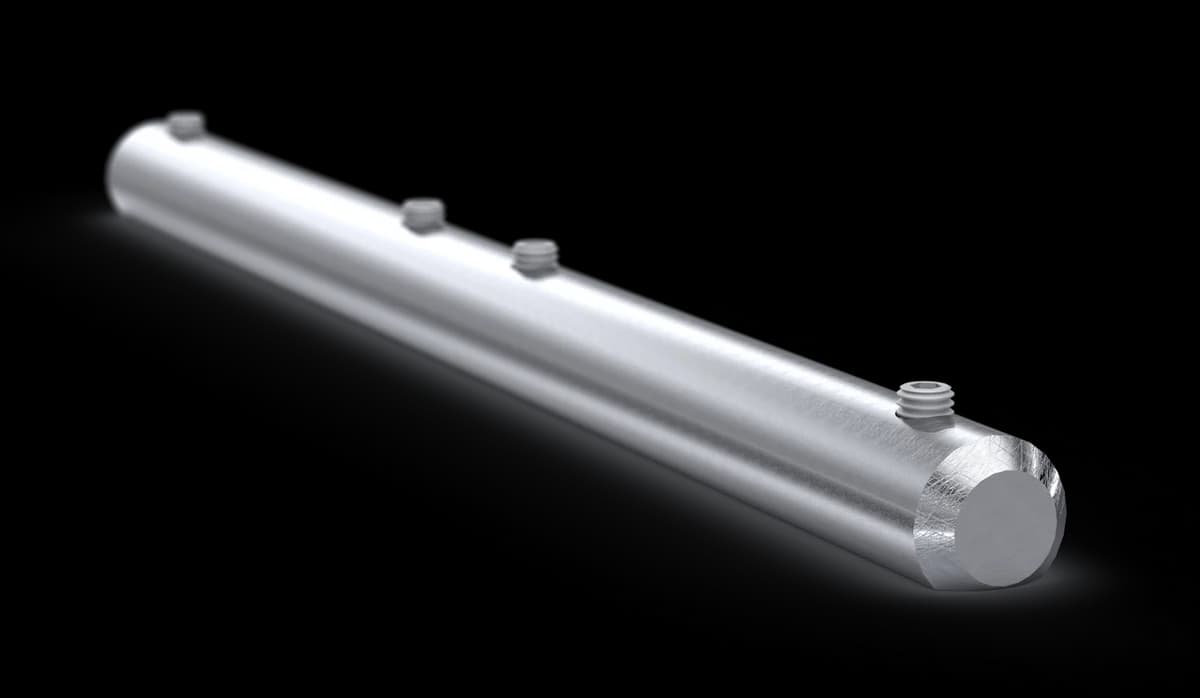

straight connector – transport

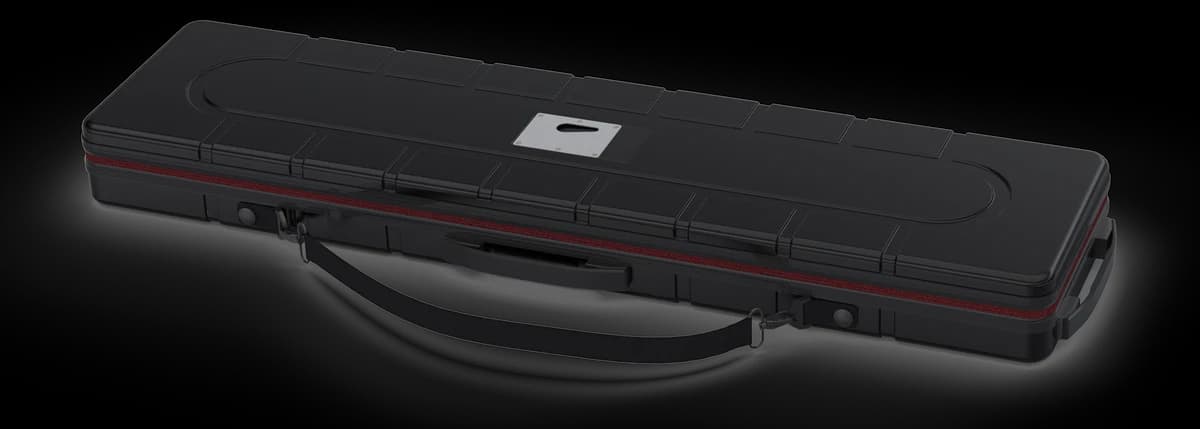

Multi tower 3D profiles can be used in lengths up to 6 m / 18 ft. or can be cut to smaller sizes for transport and connected with straight connectors. A two meter / 78.8” profile can be cut in two pieces. This makes transporting much easier. For transport we use hard-sided cases.
RAL colours
Different colours are possible upon request (powder coating).
Application
